Experiment E286 at GANIL; The way of the beam in the G2 experimental hall

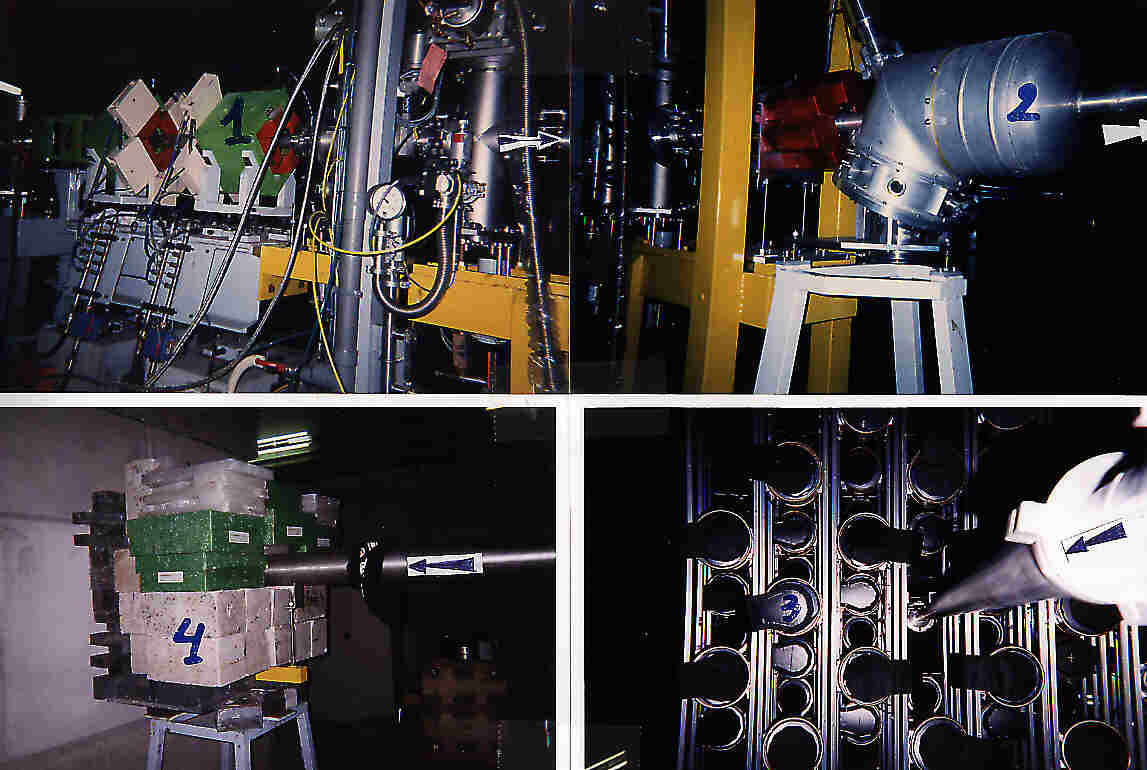

The Argon beam focused by the quadrupole magnets (1) hit the Nickel target inside the thin wall vacuum chamber (2); the emitted particles are registered by the DEMON modules (3) located around the beam pipe; the beam-stop is separated by the absorbers (4). Beam-way
